Advantages of this furnace
The closed production cycle
Process of preliminary drying of raw materials, pyrolysis, cooling of coal and its stabilization occurring in one vessel – a pull-out retort
Environmental friendliness of the equipment
Burning of all products of thermal decomposition of wood in uniform furnace space! This furnace provides not only development of necessary energy, but also environmental friendliness of the equipment
Energy efficiency
Use of energy of pyrolysis for conducting technological process and drying of wood
Long term of operation
All furnaces have stationary reactors from stainless steel which provide heating of pull-out retorts without direct contact with a heat carrier stream
Optimization of working processes
Use of the gases fulfilled in the furnace for preliminary drying of firewood gives the chance to reduce humidity of wood, to thereby increase furnace efficiency
Uniform operation of the furnace
Pyrolysis reactors work with shift in time from the beginning of operation of each subsequent reactor. At the expense of it constant temperature is maintained in the furnace and there is no overheating
Inspection automation
Control behind operation of the furnace is exercised by an automatic system which control panel can be placed in the place, comfortable for personnel, to monitor operation of the furnace remotely
Reduction of time of a full cycle
Compulsory acceleration of process of stabilization of coal in retorts after cooling.
As a result the full cycle of production of coal decreases several times
In more detail about the furnace

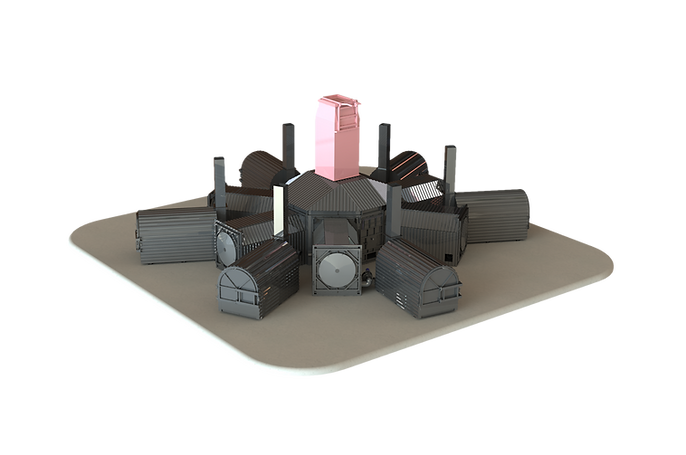

The BOSA 6-150 FL furnace is charcoal installation of retort type with frontal loading unloading of pull-out retorts.
The furnace consists of six separate pyrolysis cases reactors. Each case reactor has "doors" through which in the reactor by means of the fork loader the retort with raw materials is established.
The pull-out retort also performs functions of capacity in which coal is cooled. Thanks to it there is no need for additional capacities for cooling, it considerably saves the budget and reduces the People necessary for work and service of the furnace. After cooling coal is unloaded and the retort is again loaded by raw materials for further installation into the reactor.
Six pyrolysis cases - reactors connect in a single whole, forming themselves uniform furnace space that considerably reduces heatlosses. The fire chamber serves as the heat carrier generator for all six retorts.
Loading of reactors retorts occurrings with shift in time, for ensuring continuous operation of the furnace and maintenance of constant temperature in reactors.
For ensuring operation of the furnace on raw materials with high percent of humidity the furnace is completed with six installations of preliminary drying.
Preliminary drying works at the expense of the combustion gases fulfilled in the furnace that allows to save on wood drying, to reduce time for wood preparation and to derive better coal for smaller time, spending smaller resources for preparation of raw materials for pyrolysis.
The furnace has an automatic control system which controls temperature in the furnace, operating the corresponding gates, turns of smoke exhausters and a cover of an emergency chimney.
углевыжигательная печь, оборудование для производства древесного угля, углевыжигательные печи купить, БОСА ЧАР ТЕХНОЛОДЖІС, оборудование для отжига угля
Technical specifications
№n/a
Parameters
Units of
measurement
BOSA 6-100 FL
BOSA 6-150 FL
* - the value of parameters depends on season, humidity of raw materials.
** - the value of parameters depend on humidity, breed and fraction of raw materials.

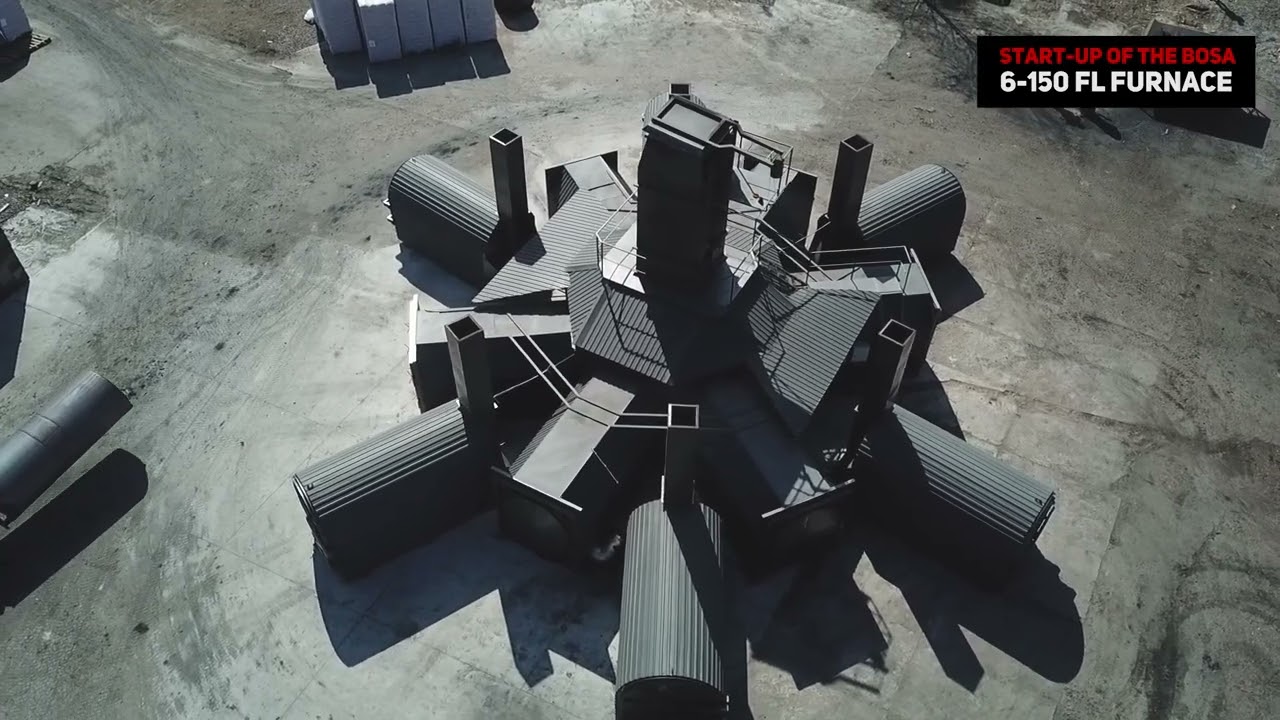

Video
Photo of the furnace
Documents
Our project use a number of patents and has technical specifications, declarations of conformity, the sanitary reports and epidemiologic service, certificates of conformity and other documents confirming high quality of our products and conformity to all norms and standards
Our contacts
We will be glad to answer your questions
